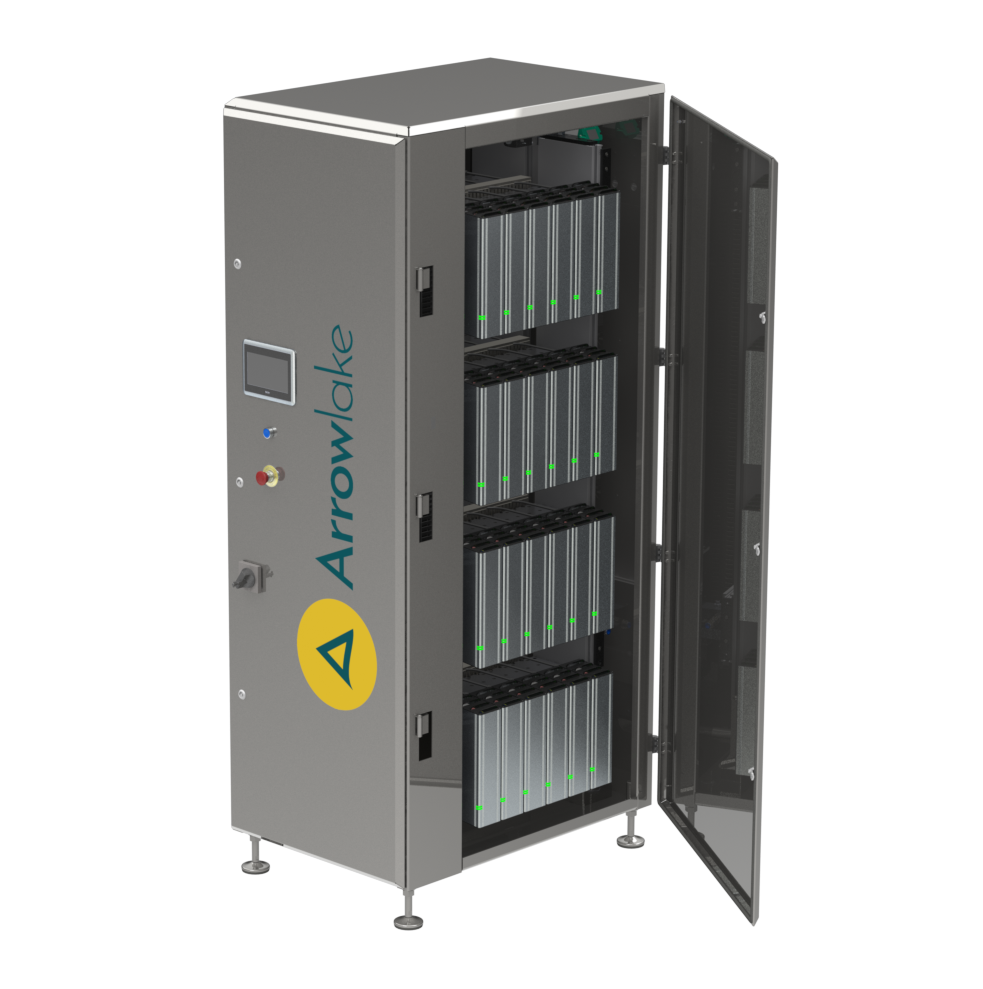

The Qube
The Qube® is a new Swedish developed and manufactured ozone generator that refines existing ozone generation technology.
With a new ground-breaking ozone reactor at its heart, The Qube® produces high concentration ozone and is more energy-efficient than traditional technology.
The scalable concept means trouble-free customization of the ozone demand towards your application and no need to oversize, hence overpay. The Qube® can easily be scaled up to meet the new demand when the need arises.
The Qube® is robust and compact unit which is easy to integrate into your application.
The Qube® – simply better ozone technology.
Different performance versions
Various applications demand various performance and that is why The Qube® is available in three different versions.
- The Qube®- S. Standard version will be able to handle a gas pressure of 1.0-3.0 bar(g) with an ozone concentration of up to 300 g/Nm3.
- The Qube®- HP. High-pressure version will be able to handle ozone gas pressure up to 4.5 bar(g)
- The Qube®- HC. High-performance version will handle ozone concentrations up to 400 g/Nm3 without leaving any impurities in the gas.
The unique HESS(TM) enclosure system
With the patented HESS system (Hygienic EMC Sealing System) The Qube® would fit into the most hygiene demanding applications. Moreover, due to its EMC certification, it can be installed near sensitive electronics.
Scalability and Modularity
The scalable system builds up on a reactor with an integrated inverter that produces 88 gram of ozone per hour. Once the ozone demand increases, additional modules are installed to meet it.
The Qube® has 4 different frame sizes to fulfil the scalability of your ozone generator.
- 230 / 400 VAC
- Cooling water up to 30°C
- Beijer XPS control system
| Conc / Power | 140/Nm3 | 200/Nm3 | 250g/Nm3 | 300g/Nm3 |
|---|---|---|---|---|
| 750 | 88 | 74 | 52 | 40 |
| 1500 | 176 | 150 | 106 | 82 |
| 2250 | 264 | 224 | 160 | 124 |
| 3000 | 352 | 300 | 214 | 166 |
| 3750 | 440 | 374 | 266 | 208 |
| The Qube | 1 Module | |
|---|---|---|
| Capacity* | 88 gr/h | 4.65 lbs/day |
| Ozone concentration** | 140-300 gr/Nm3 | 9-20 wt% |
| Control range | 10-100% | 10-100% |
| Energy consumption* | 8kW per kg O3 | 3,63 kW per lbs |
| Gas pressure*** | 1.0-3.0 barg | up to 58 PSI |
| Oxygen purity | >92% | >92% |
| Cooling water temp | 2-30°C | 35-86°F |
| Max cooling water pressure | 7 barg | 100 PSI |
| Ambient temperature range | 5-40°C | 40-105°F |
| IP-Class | Frame size 1 – IP66 Frame size 2-4 – IP65 | NEMA4x |
| Control System | Beijer XPS | |
| External com port | Modbus TCP | |
| HMI | 7″ Touch | |
| * at a ozone gas concentration of 140 gr/Nm3 (9 wt%) | ||
| ** Standard version (High performance version 200-400 gr/Nm3 (13.4-25.0wt%) | ||
| *** Standard version (High pressure version up to 4,5 barg (up to 72 PSI) | ||
